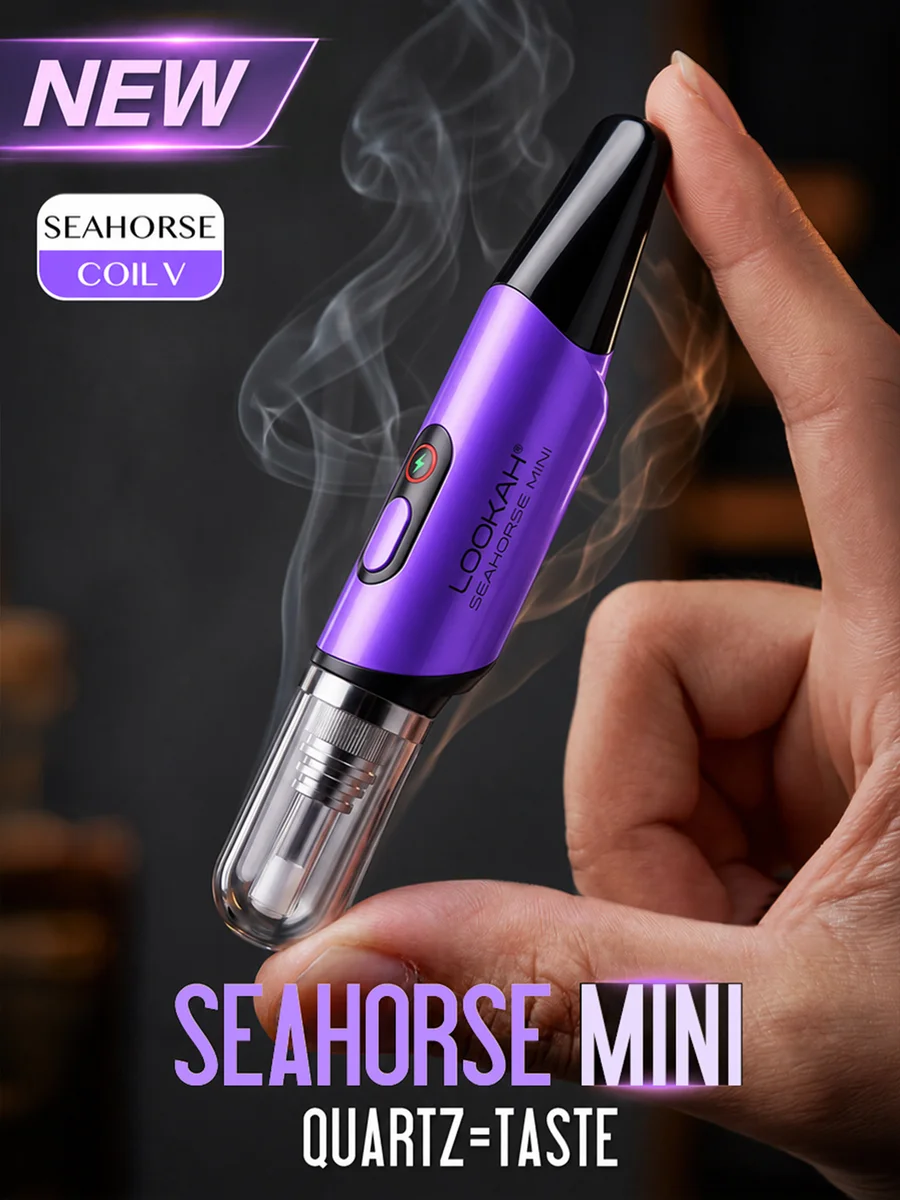

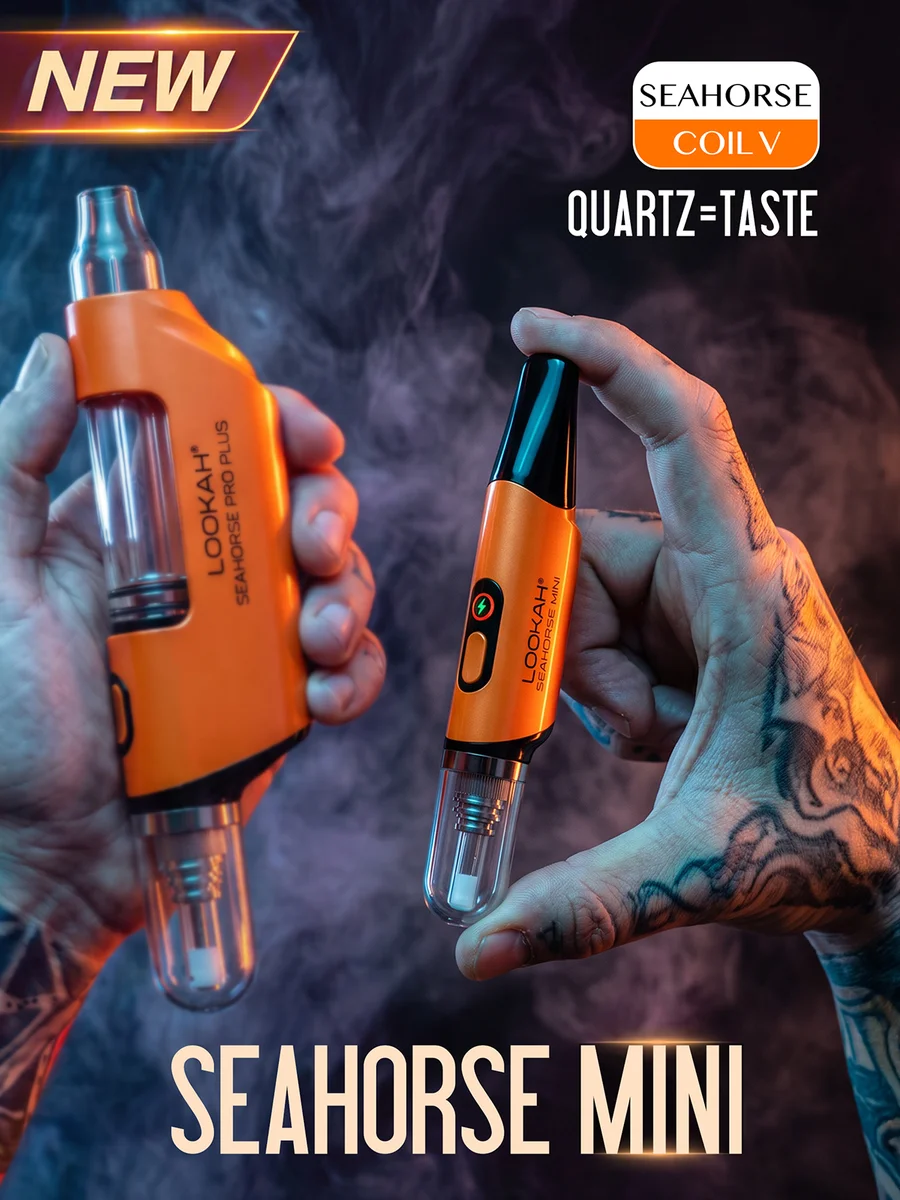

The Lookah Seahorse Mini is an electric nectar collector built around a 510 screw connection and Lookah's Seahorse coil system. Choose from 3.2V, 3.6V and 3.9V settings, use the button for on-demand output, or start the automatic wax-atomizer mode for a timed 15-second preheat followed by 25 seconds of output. A built-in 310mAh battery charges through Type-C, while separate mode and power indicators show the selected voltage and remaining charge range.
One device, two clearly defined operating modes
The Seahorse Mini gives you direct control when you want it and a timed cycle when you do not want to hold the button.
Universal manual mode works with compatible 510-thread wax and CBD atomizers. From standby, hold the button to activate output and release it to stop. A 25-second cutoff limits each continuous activation.
Automatic wax-atomizer mode is reserved for a compatible wax atomizer. The device preheats for 15 seconds and then delivers 25 seconds of automatic output before returning to standby. You can exit the cycle and return to standby with three button presses.

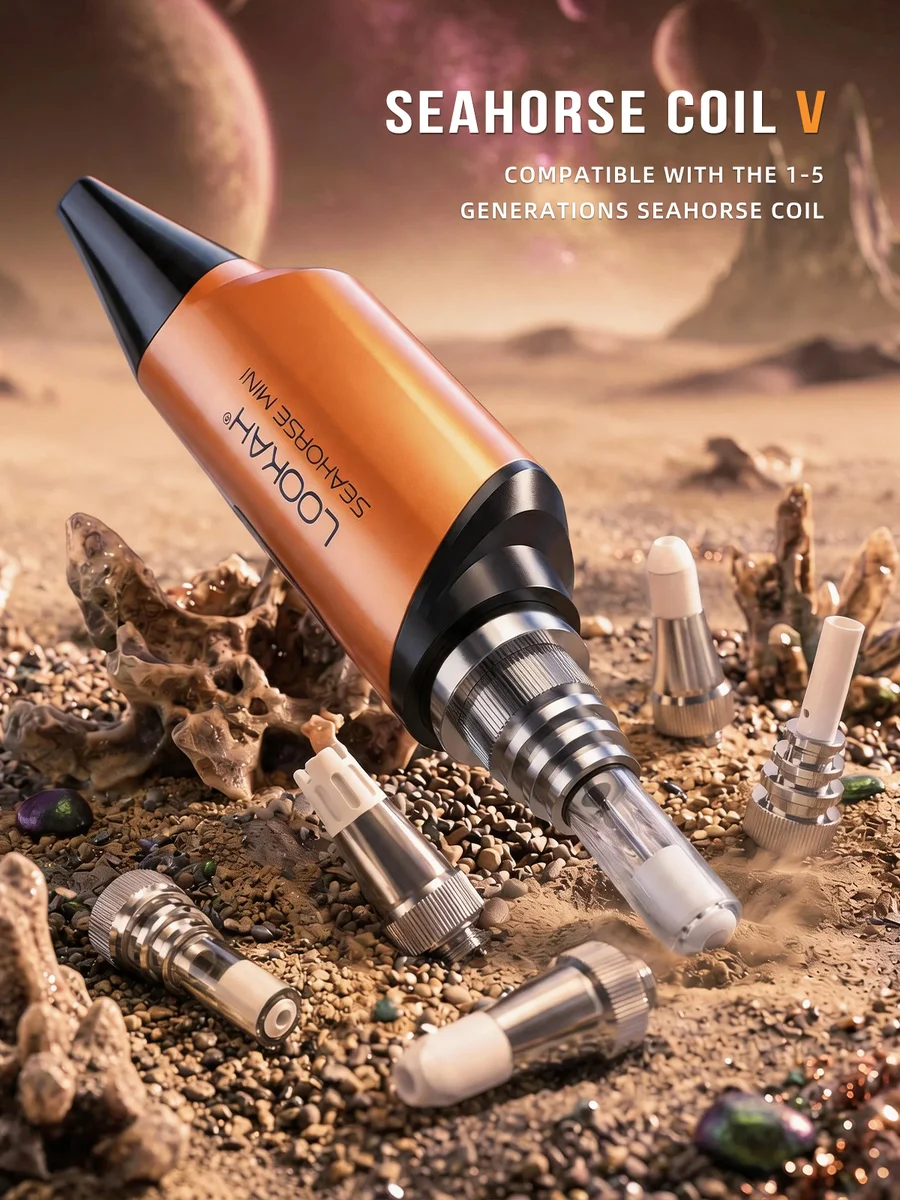

For shoppers comparing an electronic nectar collector with a dab pen or wax pen, the connected component is the important distinction. The Seahorse coil provides the nectar-collector configuration, while the 510 connection can also support compatible atomizers.
How to use the Lookah Seahorse Mini
Manual mode
1.Fit a compatible coil or 510-thread atomizer and make sure the connection is secure.
2.Press the button five times within two seconds to turn the device on. The lights flash white three times before the device enters standby.
3.Press the button twice within 0.8 seconds to select 3.2V, 3.6V or 3.9V.
4.Hold the button to activate output. Release it to stop. The device also stops output after 25 seconds of continuous activation.
5.Press the button five times within two seconds to turn the device off after use.
Automatic wax-atomizer mode
1.Start in standby with a compatible wax atomizer connected.
2.Press the button three times within 1.2 seconds to enter automatic mode.
3.The device runs a 15-second preheat, followed by 25 seconds of automatic output.
4.Press the button once during automatic mode to change between the three voltage settings.
5.Press the button three times to exit automatic mode and return to standby.
For added power management, the Seahorse Mini turns itself off after 60 minutes without activity in standby mode.
Built-in operating protections
The Seahorse Mini monitors charging, battery voltage, load resistance, internal temperature and activation time. Its documented safeguards include:
•Overcharge cutoff when battery voltage reaches 4.30V or higher
•Over-discharge cutoff when battery voltage reaches 2.50V or lower
•Short-circuit and low-resistance protection at 0.4 ohm or lower
•Open-circuit protection above 10 ohm
•Temperature protection when PCBA temperature exceeds 75 degrees C during operation
•A 25-second continuous-output timeout
These protections can interrupt output when the device detects a condition outside its operating limits. They do not replace correct coil installation, cooling time or routine care.
Cleaning and routine care
Turn the device off and allow the coil and outer shell to cool before handling or cleaning. Once cool, use the cleaning brush shown in the manual to remove loose residue from accessible areas. Keep the device body and charging port dry; the manual states that the device must not be exposed to water.
Do not improvise a soaking or solvent-cleaning method for the electronic body. Follow the official care guidance for the specific Seahorse coil or replacement atomizer, and replace a used coil when its condition or the device's circuit warning indicates that replacement is needed.
Is the Lookah Seahorse Mini an electric nectar collector?
Yes. The Lookah Seahorse Mini is an electric nectar collector using a Seahorse coil and a 510 screw connection. Its support for compatible 510-thread atomizers is an additional compatibility feature; it does not make every setup a dab pen or wax pen.
What voltage settings does the Seahorse Mini have?
It has three settings: 3.2V with a green mode light, 3.6V with a blue light and 3.9V with a white light. Double-press the button in standby to change settings.
Does the Seahorse Mini have an automatic mode?
Yes. With a compatible wax atomizer, three button presses within 1.2 seconds start a 15-second preheat followed by 25 seconds of automatic output. Press three times again to exit.
Which atomizers are compatible?
The device has a 510 screw connection, and the manual lists a supported load range of 0.4 to 10 ohm. It describes universal manual mode for compatible wax and CBD atomizers, while automatic mode is exclusive to a compatible wax atomizer. The manual also says low-resistance protection activates at 0.4 ohm or below, so confirm both the connection and resistance, especially at the lower boundary.
How do I know when the battery is low?
The power light shows a charge range: red for 1%-30%, yellow for 31%-60% and green for 61%-100%. A low-battery alarm makes the power and mode lights flash red eight times.
How do I charge the Seahorse Mini?
Connect the Type-C port to a 5V USB power source. During charging, the mode light rotates red and the power light stays on. Solid green and cyan lights indicate a full charge. The manual lists a 300mA charging current.
Kit Includes
1:Seahorse mini*1
2:Cleaning brush*1
3:User Manual *1
4:Seahorse Coil*2
